Product Description
As a professional Multi-functional Back Sealing Machine Manufacturer, Packmate provides high-speed sachet packaging solutions for powder, granule, and seasoning products. Designed for continuous industrial production, this machine integrates film forming, metering, filling, sealing, cutting, and finished bag discharge into one automated packaging system.
Suitable for food, coffee, seasoning, pharmaceutical, and daily chemical applications, the machine delivers stable back sealing performance, accurate dosing, and flexible packaging configurations for different product characteristics and bag types.
This machine is widely used for automatic sachet packaging of:
High Versatility
Designed specifically for back-seal packaging, compatible with various metering heads (powder, liquid, granules, multi-head scales).
High Applicability
Suitable for a wide variety of products such as chili powder, sauce packets, traditional Chinese medicine, and peanuts.
High Efficiency
Maximum speed up to 120 packets/minute, 3 times more efficient than ordinary equipment.
|
Packaging Materials |
As per customer requirements |
|
Packaging Range |
As per customer requirements |
|
Packaging Speed |
100-120 cuts/minute (actual speed depends on material quantity) |
|
Packaging Film Width |
310mm |
|
Bag Making Range |
Bag width 145mm × 120 ≤ bag length ≤ 150mm |
|
Sealing Method |
Side seal |
|
Back Seal Width |
10mm, straight lines (2.0mm spacing) |
|
Horizontal Seal Width |
10mm, straight lines (2.0mm spacing) (Sample bag image as reference) |
|
Cutting Method |
Servo-tooth cutting (cutting in the middle of the horizontal seal, not an independent cutter) |
|
Bag Pulling Method |
Servo motor synchronous belt bag pulling |
|
Horizontal Sealing Method |
Servo motor horizontal sealing, following the bag pulling |
|
Vertical Sealing Method |
Servo motor roller pressure sealing |
|
Operating Voltage |
220V/50HZ KW (depending on the number of rows) |

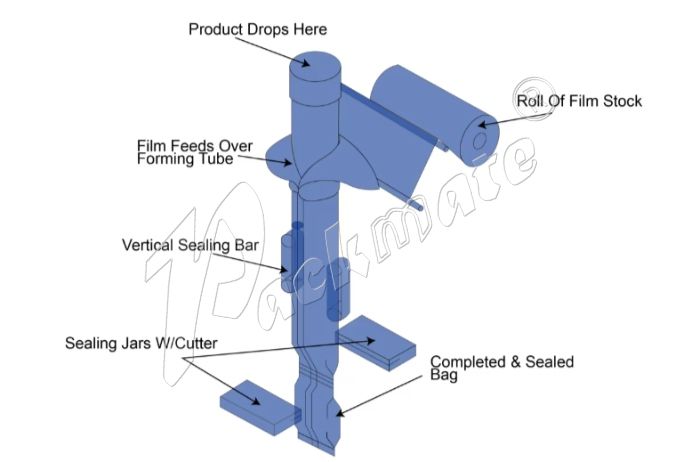

The machine completes the entire packaging process automatically:
The fully automated workflow improves packaging efficiency while reducing labor requirements.
Different filling systems can be configured according to product type and packaging requirements.
| Product Type | Recommended Filling System |
|---|---|
| Powder | Auger filler |
| Granules | Volumetric cup filler |
| Snacks | Multi-head weigher |
| Fine powder | Servo auger filling system |
This machine is suitable for:
Optional devices are available according to production requirements:
Yes. Different filling systems can be configured according to product characteristics.
Yes. The machine supports small sachet and stick pack applications.
Yes. Bag width and length can be customized according to production requirements.
Yes. Optional nitrogen flushing systems are available for coffee and food packaging applications.
Yes. Online technical support and overseas commissioning services are available.
Tell us your product type, bag size, filling weight, and required production capacity.
Our engineers will recommend the most suitable back sealing packaging solution for your production line.
