Product Description

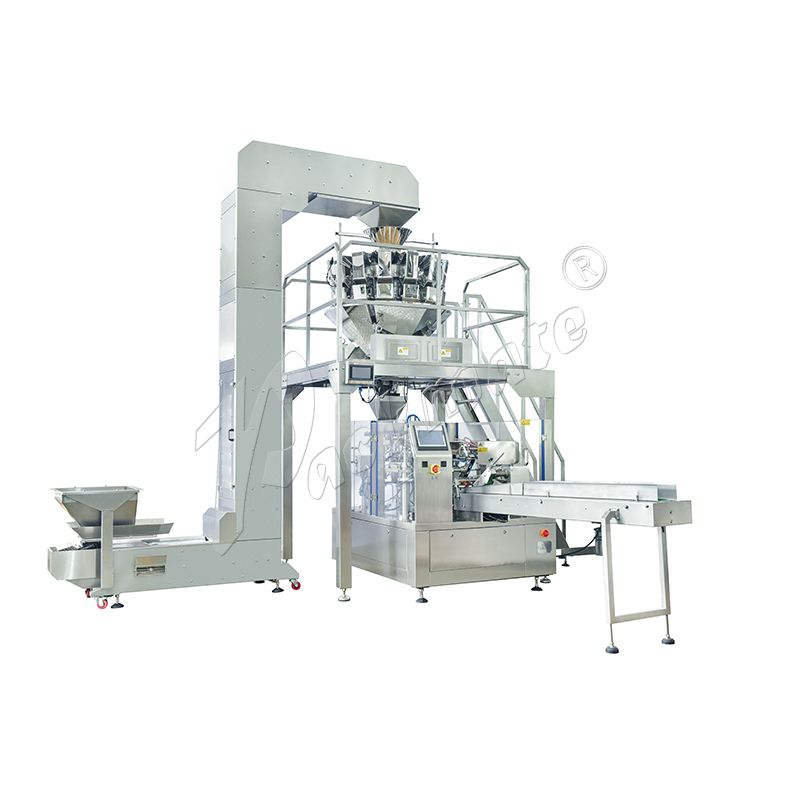

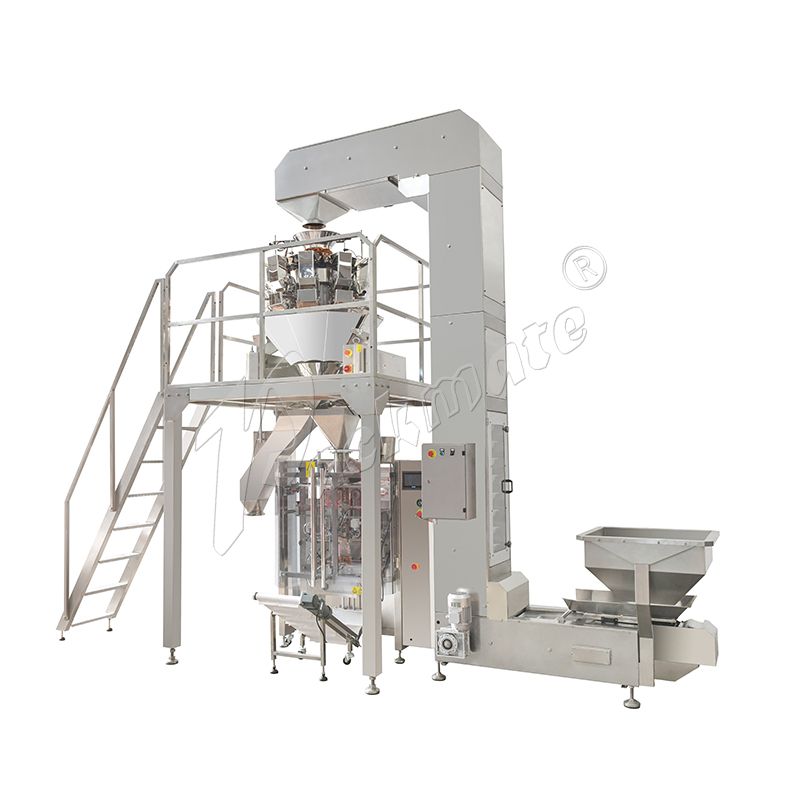

This packaging machine packages at high speeds of 10 to 60 bags per minute, supporting various bag types including pillow bags, gusseted bags, and four-side seal bags. It integrates advanced features such as automatic film positioning control, high-efficiency servo motor drive, and a PLC controller with a color touchscreen for easy operation. Constructed from 304 stainless steel, the machine ensures hygiene and durability, guaranteeing food packaging safety. It supports various packaging materials and features safety functions such as an alarm system for low air pressure or activation of safety guards.
The equipment is widely exported to the UAE, Hungary, and Spain. Full customization, design customization, and sample customization services are available, achieving 100% customer satisfaction.
|
Packaging Material |
Traditional Chinese Medicine (Roots, Stems, Fruits) |
|
Packaging Capacity |
1-50g |
|
Packaging Speed |
50-100 bags/min (depending on bag length and material) |
|
Bag Making Capacity |
50 ≤ W ≤ 150mm × L ≤ 230mm |
|
Packaging Film |
≤ 320mm |
|
Forming Units |
2 sets included |
|
Forming Unit Dimensions |
① Forming Unit: Film width 160mm, Bag width 70mm ② Forming Unit: Film width 180mm, Bag width 80mm |
|
Sealing Method |
Back seal |
|
Vertical Seal Method |
Side seal (single-action) |
|
Back Seal Width |
10mm, straight lines |
|
Horizontal Seal Width |
20mm width of the entire horizontal seal mold, straight lines (2mm spacing) |
|
Cutting Method |
Patterned cutting (cutting from the center of the horizontal seal, not an independent cutter) |
|
Photoelectric Control |
Length controlled by color mark or set on the touchscreen |
| Bag pulling method | Servo motor driven belt bag pulling |
|
Horizontal sealing method |
Servo motor horizontal sealing |
|
Packaging material |
Composite packaging material |
|
Power supply |
AC 220V/50HZ 2.5KW |
|
Air source pressure |
6Kg |
|
Air consumption |
0.4 m³/min |
Weighing:
|
Weighing range |
1-200g |
|
Weighing speed |
≤ 110 bags/min (varies depending on packaging weight and material characteristics) |
|
Weighing accuracy range |
X (0.5) grade，Approximately ±0.1～0.5g (depending on material) |
|
Hopper capacity |
500ml |
|
Drive method |
Stepper motor |
|
Body material |
304 stainless steel |
|
Hopper material |
304 flat stainless steel |
|
Power supply |
AC 220V/50HZ 1.5KW/10A |
