New Version First Choice for New Users Experimental Nicotine Pouches Granule and Powder Packaging machine

Based on user needs, the company has launched a bag-in-bag cigarette dispenser. This dispenser seals the granulated cigarettes into a bag, preventing other products from being exposed to excessive air, losing their aroma, or becoming contaminated if not used up at once. This ensures that every opened cigarette retains its original flavor.

Next Product Inquire Now

Product Description

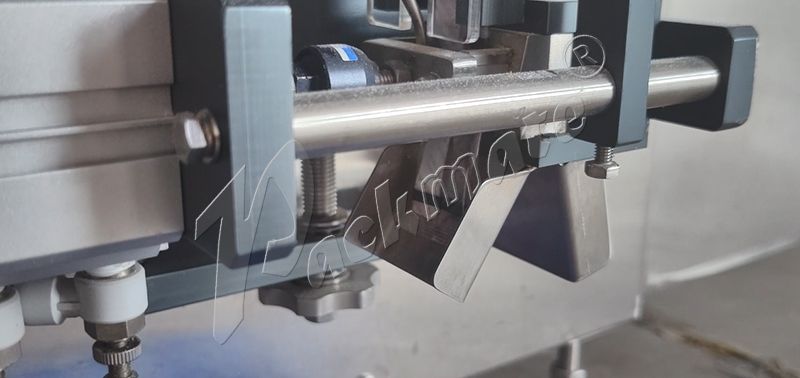

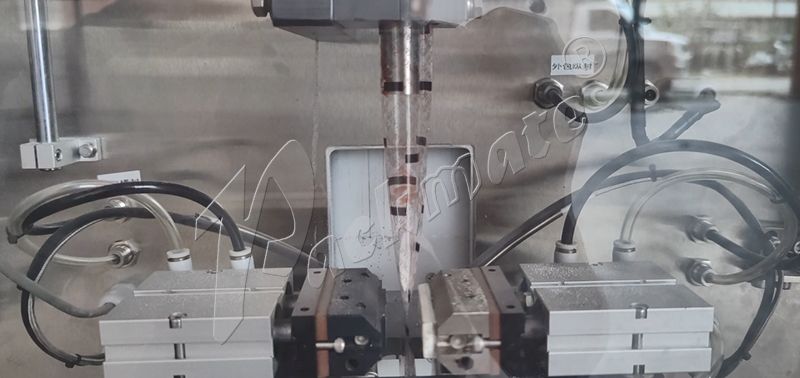

This equipment utilizes a miniature dual-metering system, similar to those used in laboratory equipment. It can use either dry filling or wet filling with 8%-40% moisture content for packaging. Its working principle is as follows: the upper section uses a laboratory-grade cigarette dispenser to fill the powder, then the filler automatically slides to the outer bag, where it undergoes a secondary forming and back sealing, thus completing the inner and outer bag process in one step, forming a bag-within-a-bag finished product. This design is primarily intended for the high-end cigarette market, ensuring better taste and hygiene. The overall speed can still reach 30-40 packs/minute.

Bag-in-Bag Parameters:

Inner Bag Opening Smoke Parameters:

Inner Bag Technical Parameters:

Packaging Material	Granules (as per sample)
Packaging Capacity	0.4g-0.6g/bag
Metering Accuracy	≤±10% (varies depending on the characteristics of the filling material and filling speed)
Packaging Speed	15-25 bags/min (single row) (varies depending on the characteristics of the filling material and filling speed)
Bag Dimensions	Bag Length: 30-50mm, Bag Width: 13mm
Packaging Film Width	30mm
Sealing Method	Back seal without texture, left and right overlapping seal
Sealing Width	Vertical seal width: 4mm, Horizontal seal width: 4mm
Horizontal Seal Texture	Untextured (standard)
Cutting Method	Rounded corner cut (cutting method can be changed with replacement accessories)
Packaging Material	Special non-woven fabric (customer provided)
Power Supply	AC 220V/50HZ 2KW
Air Consumption	6Mpa, 0.6 m³/min

Outer Bag Packaging Parameters

Packaging Speed	15-25 bags/min
Bag Size	30 mm (W) 75 mm (L)
Packaging Film Width	70 mm
Sealing Method	Twist-edge sealing
Back Seal Width	5 mm, plain
Horizontal Seal Width	7 mm, straight lines on the front (1.2 mm spacing), plain on the back
Cutting Method	Rounded corner punching, 2 mm waste material

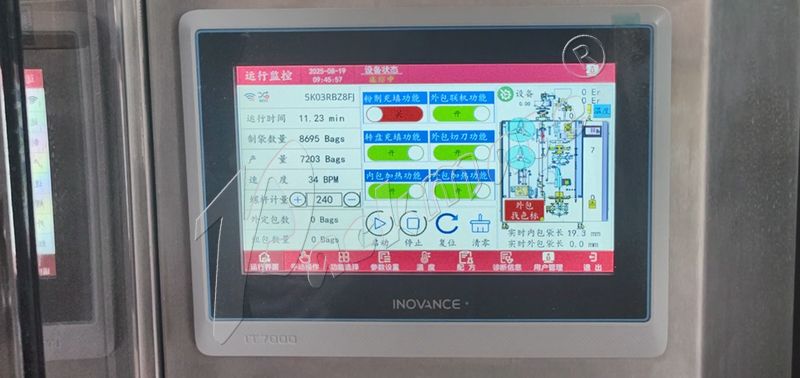

Photoelectric Control	Length controlled by color mark or set on touch screen
Bag Pulling Method	Servo motor heat sealing pull bag (Inovance)
Packaging Material	Composite packaging material
Power Supply	AC220V/50HZ 2.5KW
Air Consumption	6Kg 0.4 m/min
