Product Description

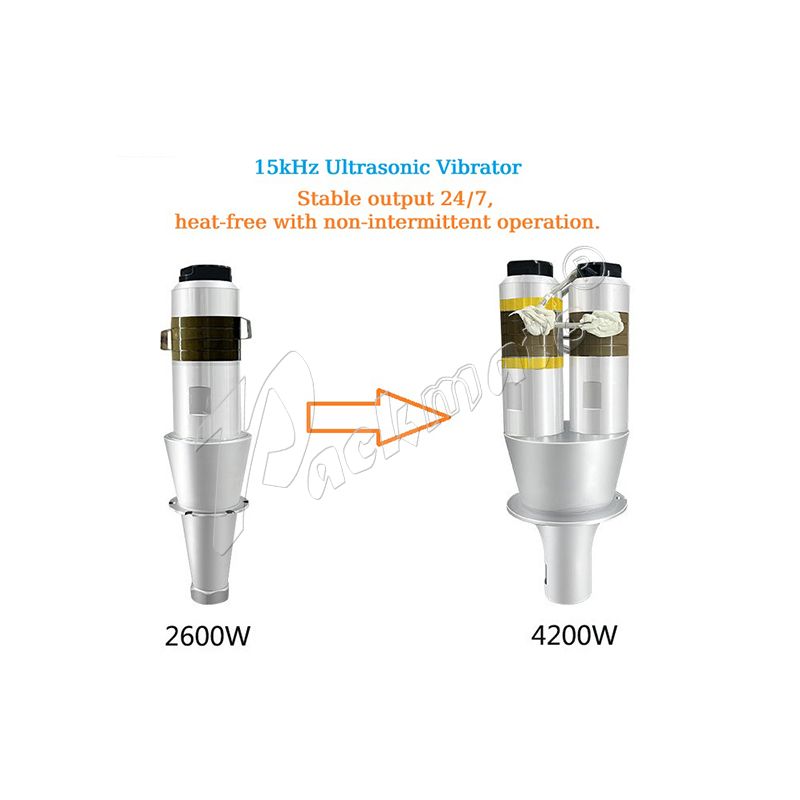

1. Our company uses a dual-vibrator structure, which offers better stability and more than double the lifespan compared to the traditional single-vibrator structure. Experimental research shows that the bottleneck vibrator in single-vibrator equipment has a lifespan of less than 30 days, while the dual-vibrator structure can achieve a lifespan more than three times under normal use. Many customers haven't even needed to replace their vibrators for six months. Note: Avoid arbitrarily adjusting parameters, as this may overload the ultrasonic wave.

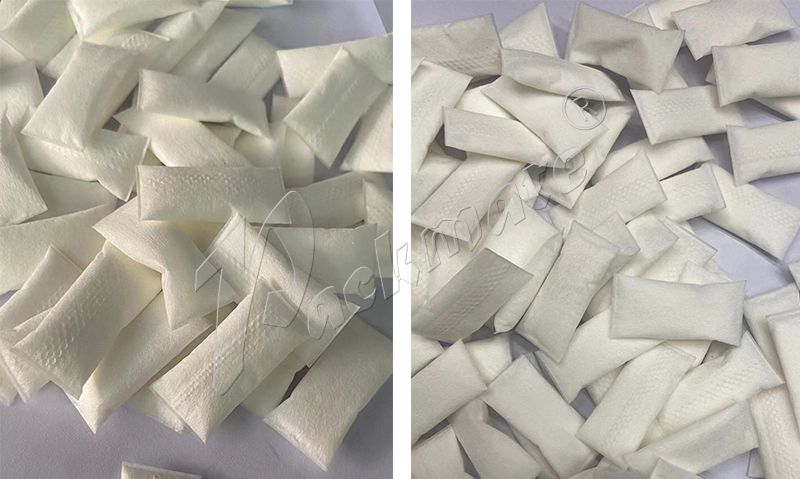

2. Does your ultrasonic wave machine have defects such as stringing or gaps? Our company uses slow wire feeding and alloy blades to ensure a smooth, gap-free cut, guaranteeing clean, string-free cutting.

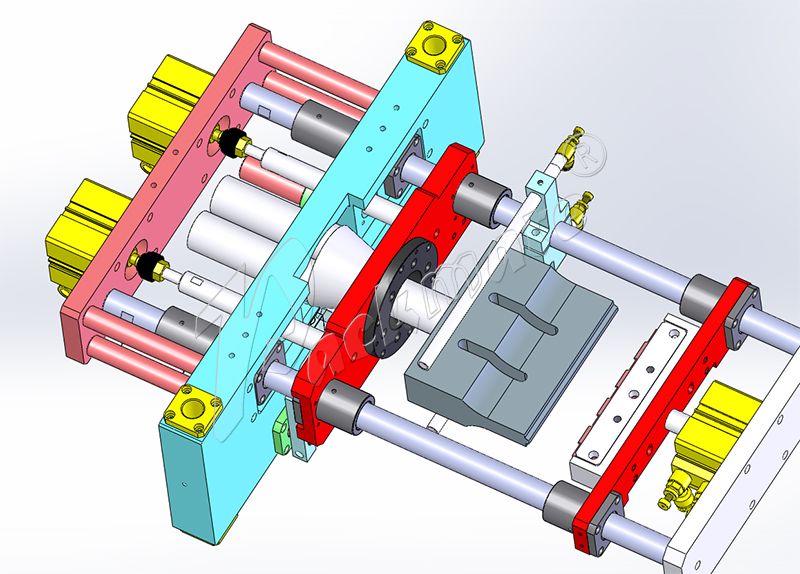

3. The horizontal seal uses a spring design, increasing cushioning and significantly extending the lifespan of the blade and vibrator.
4. Can an ultrasonic machine also perform heat sealing? Yes, our company can modify the equipment to ensure it is compatible with both heat sealing and ultrasonic waves. This can be achieved by simply disassembling and reassembling some components.
|
Packaging material |
oral smoke particles (by sample) |
|
Packaging capacity |
0.4-0.6g/bag Measuring accuracy: ≤±10% |
|
Packaging speed |
30-45 bags/min (single lane) * 4 lanes |
|
Bag making size |
single lane: bag length: 20-50mm, pouch width: 13 mm, single lane film width: 30mm |
|
Packaging film width |
120mm |
|
Sealing form |
back sealing without pattern, left and right overlapping |
|
Sealing width |
vertical sealing width: 4mm horizontal sealing width: 5mm |
|
Horizontal sealing pattern |
no pattern and mesh pattern 2 sets of heat sealers |
|
Cutting method |
flat cutting and saw tooth cutting 2 sets of cutters |
|
Packaging material |
composite packaging material, such as: BOPP/PE |
|
Power supply power |
AC 220V/50HZ 3KW |
|
Gas source consumption |
6Kg, 0.6 m3/min |
◇ Inovance 7' color touch screen + Inovance PLC (Chinese operating language), error prompt, self-diagnosis function, equipment operation lack of film, safety door open, equipment operation abnormality and other alarm functions, three-color alarm light
◇ Taiwan Airtac pneumatic components
◇ 6-way Omron temperature controller with temperature difference alarm
◇ Manual deviation correction system
◇ Debugging of automatic waste bag removal device
◇ Schneider or OMRON electrical components
◇ 4-row electric roller film separation
◇ Film feeding method: gravity active film feeding
◇ Horizontal seal bag pulling, Inovance servo motor control
◇ The part in contact with the material is made of stainless steel 304
◇ Quick film connection workbench
◇ Standard safety door switch (Panasonic door safety switch)
◇ Photoelectric function: None
◇ The frame, electrical box and the part in contact with the material are made of stainless steel 304 or aluminum alloy, which meets GMP requirements
◇ Dust removal device above the horizontal seal (including vacuum cleaner)
|
Measuring range |
0.4-0.6g/bag |
|
Measuring method |
horizontal screw |
|
Measuring accuracy |
±1-10% (depending on the characteristics of the filled material and the filling speed) |
|
Driving method |
stepper motor |
◇ Compressed air assisted blowing feeding device
◇ The silo is equipped with a rotating material breaking device to facilitate filling and ensure accuracy.
◇ 304 or aluminum alloy exterior parts, the parts in contact with materials are made of stainless steel 304
◇ Easy to disassemble and clean design
◇ Air source consumption: 6Kg, 0.8 m3/min
◇ Power supply: AC220V/50Hz, 0.4Kw
◇ Measuring range: 0.4-0.6g/bag
◇ Measuring adjustment: adjustable measuring cup
◇ Measuring accuracy: ±1-10% (depending on the characteristics of the filled material and the filling speed)
◇ Driving mode: motor with divider
◇ Precision throttle valve controls auxiliary air blowing and unloading device
◇ The silo comes with a rotating material breaking device to facilitate filling and ensure accuracy.
◇ 304 or aluminum alloy exterior parts, parts in contact with materials are made of stainless steel 304
◇ Easy to disassemble and clean design
◇ Gas consumption: 6Kg, 0.8 m3/min
◇ Power supply: AC220V/50Hz, 0.4Kw
